FORESTRY

FORESTRY

Primex LogStomper tires feature the latest tire technology including proprietary SteelFlex construction. This design combines the best features of Aramid fiber (KEVLAR®) and Steel for dramatic resistance to tread and sidewall penetration. LogStompers are available in the widest range of sizes, patterns and construction configurations in the industry. LogStompers are available for log skidder and cut-to-length (CTL) operations.

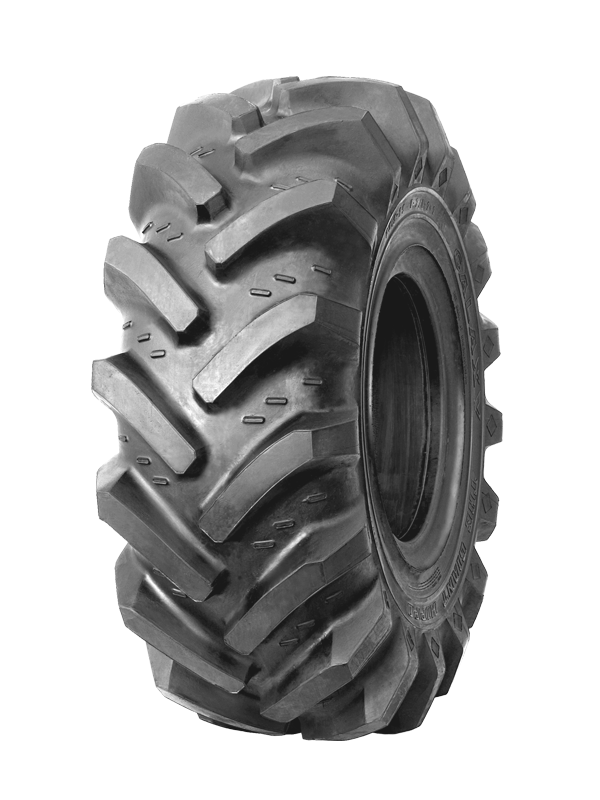

GALAXY GIANT HIPPO E-2/L-2

The Giant Hippo features a revolutionary new design that marries the construction and bead design of an earthmover tire with the tread design of a forestry tire. The result is a loader tire with unparalleled pulling power and tractive capabilities. The Hippo also features rim shield and sidewall protectors, as well as a buttress shoulder. The buttress shoulder significantly adds to the tire's pulling power, an increase of up to 21%. This tire has gained the respect of several Original Equipment Manufacturers in the reclamation business.

applications
  • Sugar Cane Harvesters
  • Wet Ground Loaders
  • Asphalt Soil Reclaimers
  • OTR Material Handlers
  • Articulating Dump Trucks
OEM Fitment Approved
code size type pr rim wt ns od sw slr l.c.c.@ap sp
lbs@psi
276468 20.5-25 TL 16 17.00/2.0 463 64 59.3 20.6 23.7 18,200@51 5
276478 23.5-25* TL 20 19.50 610 68 64.5 24.8 28.0 24,000@54 5
276482 26.5-25 TL 20 22.00 803 72 66.2 29.5 29.5 26,000@50 5
276512 23.1-26 TL 16 20.00 525 68 64.8 23.6 28.9 21,800@35 20
* Steel Reinforced
