Product SheetProduct Catalog

AGRICULTURAL

AGRICULTURAL

Primex agricultural tires are engineered to out perform in this demanding workplace and are available for virtually every agricultural application. Easy on the environment, but tough on the job, Galaxy agricultural tires offer premium tread depths and exceptional carcass construction.

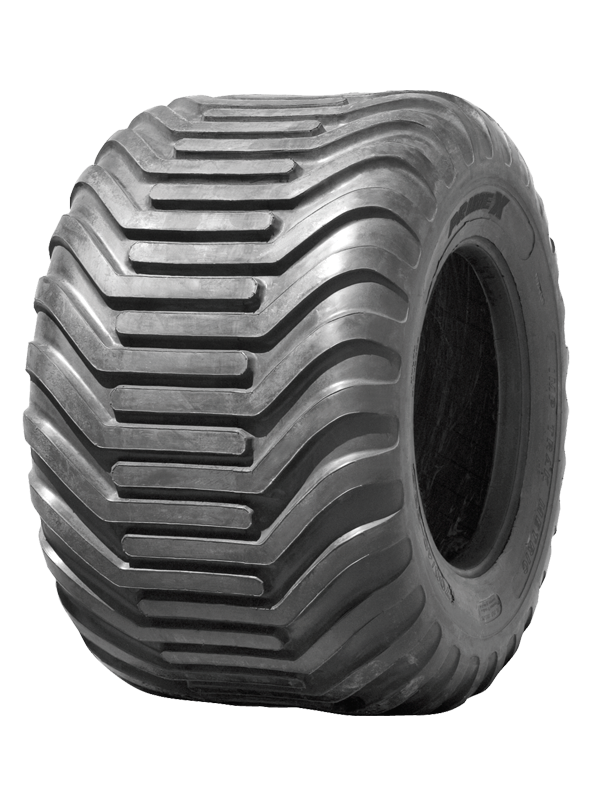

PRIMEX IMPTRAK METRIC I-3

The ImpTrak Metric is designed for free-rolling wheels where flotation and limited soil compaction is desired. The ImpTrak Metric is available in a large range of metric sizes.

applications
  • Fertilizer Spreaders
code size type pr rim wt ns od sw slr l.c.c.@ap sp
lbs@psi
504384 500X60-22.5 16 TL 16.00 191 25 46.5 20.1 20.7 10745@46 FW 25
504385 550X60-22.5 16 TL 16.00 208 25 49.8 20.9 22.1 11670@33 FW 25
504386 600X50-22.5 16 TL 20.00 214 25 46.5 24.0 20.7 11351@38 FW 25
504387 600X55-22.5 16 TL 20.00 234 25 50.0 23.6 22.2 12780@38 FW 25
504388 700X40-22.5 16 TL 24.00 247 25 46.5 27.9 20.7 11681@32 FW 25
504658 550X60-22.5 12 TL 16.00 236 25 49.8 20.9 22.1 9910@30 FW 25
504390 700X50-22.5 16 TL 24.00 265 25 50.0 27.6 22.2 14760@35 FW 25
